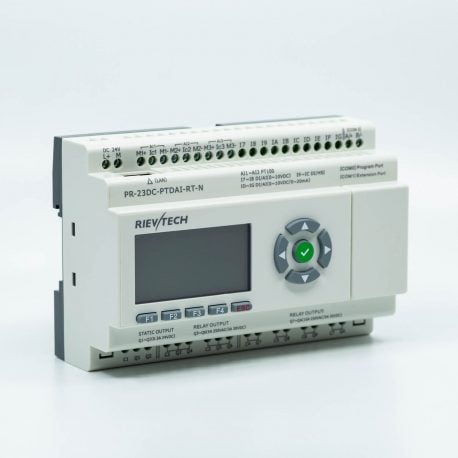

PR-23DC-PTDAI-RT-N

PR-23 PT100 Ethernet Series PLC CPU – Digital/Analogue (DC)

Power Supply: 24 VDC
Expandable: Yes
LCD: Yes
Web Server: Yes
SD Logging: Yes
IIoT: Yes – MQTT Protocol
Communication:
- Ethernet: Yes – 10/100Mb
  - Modbus TCP/IP Client
  - Modbus TCP/IP Server
  - BACnet/IP Server
- RS485: Yes (2-ports)
  - Modbus RTU Client
  - Modbus RTU Server
- 4G/GSM: No
- Email: No
- SMS: No
- GPRS: No
Digital:
- Inputs – Up to 10-channels
  - I7 to I8 – DI (24VDC)
  - I9 to IC – DI (24VDC) High Speed (60kHz)
  - ID to IG – DI (24VDC)
- Outputs – 10-channels
  - Q1 – Q2 (PNP Max.0.3A) – PWM (10kHz)
  - Q3 – Q6 (Max. 5A @ 250VAC/3A @ 30VDC)
  - Q7 – QA (Max.10A @ 250VAC/ 5A @ 30VDC)
Analogue:
- Inputs – Up to 12-channels
  - I1 to I3 – 3-wire PT100
  - ID to IG – AI (0-10V/0-20mA)
- Outputs – None

SKU: PR-23DC-PTDAI-RT-N Categories: Ethernet PLC's, Micro PLC, PR-23 Series, Rievtech PLC Tags: Analogue Input, BACnet/IP, DC Power, Digital Inputs, Digital Outputs, Ethernet, HSI, IIoT, modbus rtu, Modbus/TCP, MQTT, PR-23, PR-Series, PWM, Rievtech, SD Logging, Web Server

Description

Range

IO Details

Features

Expansion IO

Model	Voltage	Inputs	Outputs	Expandable
PR-6AC-R	110/240 VAC	4	2	No
PR-6DC-DA-R	24 VDC	4	2	No
PR-12AC-R-E	110/240 VAC	8	4	No
PR-12DC-DA-R-E	24 VDC	8	4	No
PR-12DC-DA-TN	24 VDC	8	4	No
PR-12DC-DA-R	24 VDC	8	4	No
PR-12AC-R	110/240 VAC	8	4	No
PR-12AC-R-N	110/240 VAC	8	4	Yes
PR-12DC-DA-R-N	24 VDC	8	4	Yes
PR-18AC-R-N	110/240 VAC	8	4	Yes
PR-18DC-DAI-R-N	24 VDC	12	6	Yes
PR-18DC-DA-RT	24 VDC	12	6	Yes
PR-18AC-R	110/240 VAC	12	6	Yes
PR-18DC-DA-R	24 VDC	12	6	Yes
PR-23DC-PTDAI-RT-N	24 VDC	13	10	Yes
PR-23DC-PTDAI-RT-4G	24 VDC	13	10	Yes
PR-24AC-R	110/240 VAC	14	10	Yes
PR-24DC-DA-R	24 VDC	14	10	Yes
PR-24DC-DAI-RTA	24 VDC	14	10	Yes
PR-26DC-DAI-RT-WIFI	24 VDC	16	10	Yes
PR-26DC-DAI-RT-4G	24 VDC	16	10	Yes
PR-26DC-DAI-RT-2G	24 VDC	16	10	Yes
PR-26DC-DAI-RT-N	24 VDC	16	10	Yes
PR-26DC-DAI-RA-N	24 VDC	16	10	Yes

Model	Digital		Analogue
Model	Inputs	Outputs	Inputs	Outputs
PR-6AC-R	4 x AC (I1 ~ I4)	2 x Relay (Q1 ~ Q2)	-	-
PR-6DC-DA-R	4 x DC (I1 ~ I4)	2 x Relay (Q1 ~ Q2)	-	-
PR-12AC-R-E	8 x AC (I1 ~ I8)	4 x Relay (Q1 ~ Q4)	-	-
PR-12DC-DA-R-E	8 x DC (I1 ~ I8)	4 x Relay (Q1 ~ Q4)	4 x 0 - 10V (I1 ~ I4)	-
PR-12DC-DA-TN	4 x DC (I1 ~ I4) 4 x HSI @ 60kHz (I5 ~ I8)	2 x PNP (Q1 ~ Q2) 2 x PNP PWM (Q3 ~ Q4)	4 x 0-10V (I1 ~ I4)	-
PR-12DC-DA-R	8 x DC (I1 ~ I8) 4 x HSI @ 60kHz(I5 ~ I8)	4 x Relay (Q1 ~ Q4)	4 x 0 - 10V (I1 ~ I4)	-
PR-12AC-R	8 x AC (I1 ~ I8)	4 x Relay (Q1 ~ Q4)	-	-
PR-12AC-R-N	8 x AC (I1 ~ I8)	4 x Relay (Q1 ~ Q4)	-	-
PR-12DC-DA-R-N	8 x DC (I1 ~ I8) 4 x HSI @ 60kHz(I5 ~ I8)	4 x Relay (Q1 ~ Q4)	4 x 0 - 10V (I1 ~ I4)	-
PR-18AC-R-N	12 x AC (I1 ~ IC)	6 x Relay (Q1 ~ Q6)	-	-
PR-18AC-R	12 x AC (I1 ~ IC)	6 x Relay (Q1 ~ Q6)	-	-
PR-18DC-DA-R	12 x DC (I1 ~ IC) 4 x HSI @ 60kHz(I9 ~ IC)	6 x Relay (Q1 ~ Q6)	6 x 0-10V (I1 ~ I6)	-
PR-18DC-DA-RT	12 x DC (I1 ~ IC) 4 x HSI @ 60kHz(I9 ~ IC)	4 x Relay (Q1~Q4) 2 x PWM(Q5 ~ Q6)	6 x 0-10V (I1 ~ I6)	-
PR-18DC-DAI-R-N	10 x DC (I1 ~ I8) 4 x HSI @ 60kHZ(I9 ~ IC)	6 x Relay (Q1 ~ Q6)	6 x 0-10V (I1 ~ I6) 2 x 0-10V or 0-20mA(I7 ~ I8)	-
PR-23DC-PTDAI-RT-N	2 x DC (I7 ~ I8) 4 x HSI(I9 ~ IC 60kHz) 4 x DC (ID ~ IG)	2 x PNP (Q1 ~ Q2 PWM 10kHz) 3 x Relay @ 5A(Q3~Q6) 3 x Relay @ 10A(Q7 ~ QA)	3 x PT100 (AI1 ~ AI3) 2 x 0-10V (I7 ~ I8) 4 x 0-10V or 0-20mA (ID ~ IG)	-
PR-23DC-PTDAI-RT-4G	2 x DC (I7 ~ I8) 4 x HSI(I9 ~ IC 60kHz) 4 x DC (ID ~ IG)	2 x PNP (Q1 ~ Q2 PWM 10kHz) 3 x Relay @ 5A(Q3~Q6) 3 x Relay @ 10A(Q7 ~ QA)	3 x PT100 (AI1 ~ AI3) 2 x 0-10V (I7 ~ I8) 4 x 0-10V or 0-20mA (ID ~ IG)	-
PR-24AC-R	14 x AC (I1 ~ IE)	10 x Relay (Q1 ~ QA)	-	-
PR-24DC-DA-R	14 x DC (I1 ~ IE)	10 x Relay (Q1 ~ QA)	6 x 0-10V (I1 ~ I6)	-
PR-24DC-DAI-RTA	12 x DC (I3 ~ IE)	6 x Relay (Q1 ~ Q6) 2 x PNP (Q7 ~ Q8 PWM 10kHz)	2 x 0-20mA (AI1 ~ AI2) 4 x 0-10V (I3 ~ I6)	1 x 0-10V (AQ9) 1 x 0-20mA (AQA)
PR-26DC-DAI-RT-WIFI	8 x DC (I1 ~ I8) 4 x HSI(I9 ~ IC 60kHz) 4 x DC (ID ~ IG)	2 x PNP (Q1 ~ Q2 PWM 10kHz) 3 x Relay @ 5A(Q3~Q6) 3 x Relay @ 10A(Q7 ~ QA)	8 x 0-10V (I1 ~ I8) 4 x 0-10V or 0-20mA (ID ~ IG)	-
PR-26DC-DAI-RT-4G	8 x DC (I1 ~ I8) 4 x HSI(I9 ~ IC 60kHz) 4 x DC (ID ~ IG)	2 x PNP (Q1 ~ Q2 PWM 10kHz) 3 x Relay @ 5A(Q3~Q6) 3 x Relay @ 10A(Q7 ~ QA)	8 x 0-10V (I1 ~ I8) 4 x 0-10V or 0-20mA (ID ~ IG)	-
PR-26DC-DAI-RT-2G	8 x DC (I1 ~ I8) 4 x HSI(I9 ~ IC 60kHz) 4 x DC (ID ~ IG)	2 x PNP (Q1 ~ Q2 PWM 10kHz) 3 x Relay @ 5A(Q3~Q6) 3 x Relay @ 10A(Q7 ~ QA)	8 x 0-10V (I1 ~ I8) 4 x 0-10V or 0-20mA (ID ~ IG)	-
PR-26DC-DAI-RT-N	8 x DC (I1 ~ I8) 4 x HSI(I9 ~ IC 60kHz) 4 x DC (ID ~ IG)	2 x PNP (Q1 ~ Q2 PWM 10kHz) 3 x Relay @ 5A(Q3~Q6) 3 x Relay @ 10A(Q7 ~ QA)	8 x 0-10V (I1 ~ I8) 4 x 0-10V or 0-20mA (ID ~ IG)	-
PR-26DC-DAI-RA-N	8 x DC (I1 ~ I8) 4 x HSI(I9 ~ IC 60kHz) 4 x DC (ID ~ IG)	2 x PNP (Q1 ~ Q2 PWM 10kHz) 3 x Relay @ 5A(Q3~Q6) 3 x Relay @ 10A(Q7 ~ QA)	8 x 0-10V (I1 ~ I8) 4 x 0-10V or 0-20mA (ID ~ IG)	1 x 0-10V (AQ1) 1 x 0-20mA (AQ2) 4 x Relay @ 5A (Q3 ~ Q6) 4 x Relay @ 10A (Q7 ~ QA)

Model	HSC	PWM	Ethernet	WiFi	GSM	RTC	RS485	Blocks	IoT	Web Server	Logging
PR-6AC-R	N	N	N	N	N	Y	N	64	N	N	N
PR-6DC-DA-R	N	N	N	N	N	Y	N	64	N	N	N
PR-12AC-R-E	N	N	N	N	N	Y	N	64	N	N	N
PR-12DC-DA-R-E	N	N	N	N	N	Y	N	64	N	N	N
PR-12DC-DA-TN	4	4	N	N	N	Y	N	512	N	N	N
PR-12DC-DA-R	4	N	N	N	N	Y	N	512	N	N	N
PR-12AC-R	N	N	N	N	N	Y	N	512	N	N	N
PR-12AC-R-N	N	N	Y	N	N	Y	Y	512	Y	Y	Y
PR-12DC-DA-R-N	4	N	Y	N	N	Y	Y	512	Y	Y	Y
PR-18AC-R-N	N	N	Y	N	N	Y	Y	512	Y	Y	Y
PR-18DC-DAI-R-N	4	N	Y	N	N	Y	Y	1024	Y	Y	Y
PR-18DC-DA-RT	4	2	N	N	N	Y	N	1024	N	N	N
PR-18AC-R	N	N	N	N	N	Y	N	1024	N	N	N
PR-18DC-DA-R	4	N	N	N	N	Y	N	1024	N	N	N
PR-23DC-PTDAI-RT-N	4	4	Y	N	N	Y	Y	1024	Y	Y	Y
PR-23DC-PTDAI-RT-4G	4	4	Y	N	Y	Y	Y	1024	Y	Y	Y
PR-24AC-R	N	N	N	N	N	Y	Y	1024	N	N	N
PR-24DC-DA-R	4	N	N	N	N	Y	Y	1024	N	N	N
PR-24DC-DAI-RTA	4	2	N	N	N	Y	Y	1024	N	N	N
PR-26DC-DAI-RT-WIFI	4	2	Y	Y	N	Y	Y	1024	Y	Y	Y
PR-26DC-DAI-RT-4G	4	2	Y	N	Y	Y	Y	1024	Y	Y	Y
PR-26DC-DAI-RT-2G	4	2	Y	N	Y	Y	Y	1024	Y	Y	Y
PR-26DC-DAI-RT-N	4	2	Y	N	N	Y	Y	1024	Y	Y	Y
PR-26DC-DAI-RA-N	4	N	Y	N	N	Y	Y	1024	Y	Y	Y

Model	Voltage	Digital Inputs	Digital Outputs	Analogue Inputs	Analogue Outputs	Serial
PR-E-16AC-R	110/240 VAC	8 x AC	8 x Relay	-	-	-
PR-E-AI-I	12/24 VDC	-	-	4 x 0-20mA	-	-
PR-E-AI-VI	12/24 VDC	-	-	4 x 0-20mA/0-10V	-	-
PR-E-PT100	12/24 VDC	-	-	3 x PT100	-	-
PR-E-AQ-VI	12/24 VDC	-	-	-	2 x 0-20mA/0-10V	-
PR-E-16DC-DA-R	12/24 VDC	8 x DC (I1~I8)	8 x Relay	4 x 0-10V (I1~I4)	-	-
PR-E-16DC-DA-TN	12/24 VDC	8 x DC (I1~I8)	8 x PNP	4	-	-
PR-RS485	12/24 VDC	-	-	-	-	1 x RS485

Additional information

Weight	0.45 kg
Dimensions	130 × 140 × 70 mm
Supply	DC
Digital Inputs	High Speed Counting, 10
Digital Outputs	PWM, Relay, Transistor (PNP), 2, 8
Analogue Inputs	0-20 mA, 0-10 V, PT100, 3, 4
Communication	Ethernet, Modbus RTU, MQTT, RS485
Features	Function Block Diagram (FBD), IIoT, LID Support, MQTT, PID, SD Logging, Web Server
HS Code	8537101090
COO	CHINA

Reviews

There are no reviews yet.

Be the first to review “PR-23DC-PTDAI-RT-N”

You must be logged in to post a review.
