PR-6DC-DA-R

£55.00 ex.VAT

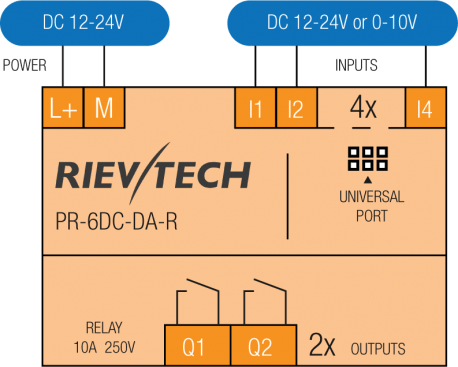

PR-6 Series PLC CPU – Digital/Analogue (DC)

Power Supply: 12 – 24 VDC
Expandable: No
LCD: No
Digital:
- Inputs – Up to 4-channels
  - OFF (0 – 3 VDC)
  - ON (8 – 24 VDC)
- Outputs – 2-channels
  - Q1 – Q2 (Max.10A)
Analogue:
- Inputs – Up to 4-channels
  - 0 – 10 V
- Outputs – None

4 in stock

Add to quote

Compare

SKU: PR-6DC-DA-R Categories: Micro PLC, PR-6 Series, Rievtech PLC Tags: DC Power, PR-6

Description

Range

IO Details

Features

Expansion IO

Model	Voltage	Inputs	Outputs	Expandable
PR-6AC-R	110/240 VAC	4	2	No
PR-6DC-DA-R	24 VDC	4	2	No
PR-12AC-R-E	110/240 VAC	8	4	No
PR-12DC-DA-R-E	24 VDC	8	4	No
PR-12DC-DA-TN	24 VDC	8	4	No
PR-12DC-DA-R	24 VDC	8	4	No
PR-12AC-R	110/240 VAC	8	4	No
PR-12AC-R-N	110/240 VAC	8	4	Yes
PR-12DC-DA-R-N	24 VDC	8	4	Yes
PR-14AC-R	110/240 VAC	10	4	Yes
PR-14DC-DA-R	24 VDC	10	4	Yes
PR-18AC-R-N	110/240 VAC	8	4	Yes
PR-18DC-DAI-R-N	24 VDC	12	6	Yes
PR-18DC-DA-RT	24 VDC	12	6	Yes
PR-18AC-R	110/240 VAC	12	6	Yes
PR-18DC-DA-R	24 VDC	12	6	Yes
PR-23DC-PTDAI-RT-N	24 VDC	13	10	Yes
PR-23DC-PTDAI-RT-4G	24 VDC	13	10	Yes
PR-24AC-R	110/240 VAC	14	10	Yes
PR-24DC-DA-R	24 VDC	14	10	Yes
PR-24DC-DAI-RTA	24 VDC	14	10	Yes
PR-26DC-DAI-RT-WIFI	24 VDC	16	10	Yes
PR-26DC-DAI-RT-4G	24 VDC	16	10	Yes
PR-26DC-DAI-RT-2G	24 VDC	16	10	Yes
PR-26DC-DAI-RT-N	24 VDC	16	10	Yes
PR-26DC-DAI-RA-N	24 VDC	16	10	Yes

Model	Digital		Analogue
Model	Inputs	Outputs	Inputs	Outputs
PR-6AC-R	4 x AC (I1 ~ I4)	2 x Relay (Q1 ~ Q2)	-	-
PR-6DC-DA-R	4 x DC (I1 ~ I4)	2 x Relay (Q1 ~ Q2)	-	-
PR-12AC-R-E	8 x AC (I1 ~ I8)	4 x Relay (Q1 ~ Q4)	-	-
PR-12DC-DA-R-E	8 x DC (I1 ~ I8)	4 x Relay (Q1 ~ Q4)	4 x 0 - 10V (I1 ~ I4)	-
PR-12DC-DA-TN	4 x DC (I1 ~ I4) 4 x HSI @ 60kHz (I5 ~ I8)	2 x PNP (Q1 ~ Q2) 2 x PNP PWM (Q3 ~ Q4)	4 x 0-10V (I1 ~ I4)	-
PR-12DC-DA-R	8 x DC (I1 ~ I8) 4 x HSI @ 60kHz(I5 ~ I8)	4 x Relay (Q1 ~ Q4)	4 x 0 - 10V (I1 ~ I4)	-
PR-12AC-R	8 x AC (I1 ~ I8)	4 x Relay (Q1 ~ Q4)	-	-
PR-12AC-R-N	8 x AC (I1 ~ I8)	4 x Relay (Q1 ~ Q4)	-	-
PR-12DC-DA-R-N	8 x DC (I1 ~ I8) 4 x HSI @ 60kHz(I5 ~ I8)	4 x Relay (Q1 ~ Q4)	4 x 0 - 10V (I1 ~ I4)	-
PR-14AC-R	10 x AC (I1 ~ IA)	4 x Relay (Q1 ~ Q4)	-	-
PR-14DC-DA-R	10 x DC (I1 ~ IA) 4 x HSI @ 60kHz(I7 ~ IA)	4 x Relay (Q1 ~ Q4)	6 x 0 - 10V (I1 ~ I6)	-
PR-18AC-R-N	12 x AC (I1 ~ IC)	6 x Relay (Q1 ~ Q6)	-	-
PR-18AC-R	12 x AC (I1 ~ IC)	6 x Relay (Q1 ~ Q6)	-	-
PR-18DC-DA-R	12 x DC (I1 ~ IC) 4 x HSI @ 60kHz(I9 ~ IC)	6 x Relay (Q1 ~ Q6)	6 x 0-10V (I1 ~ I6)	-
PR-18DC-DA-RT	12 x DC (I1 ~ IC) 4 x HSI @ 60kHz(I9 ~ IC)	4 x Relay (Q1~Q4) 2 x PWM(Q5 ~ Q6)	6 x 0-10V (I1 ~ I6)	-
PR-18DC-DAI-R-N	10 x DC (I1 ~ I8) 4 x HSI @ 60kHZ(I9 ~ IC)	6 x Relay (Q1 ~ Q6)	6 x 0-10V (I1 ~ I6) 2 x 0-10V or 0-20mA(I7 ~ I8)	-
PR-23DC-PTDAI-RT-N	2 x DC (I7 ~ I8) 4 x HSI(I9 ~ IC 60kHz) 4 x DC (ID ~ IG)	2 x PNP (Q1 ~ Q2 PWM 10kHz) 3 x Relay @ 5A(Q3~Q6) 3 x Relay @ 10A(Q7 ~ QA)	3 x PT100 (AI1 ~ AI3) 2 x 0-10V (I7 ~ I8) 4 x 0-10V or 0-20mA (ID ~ IG)	-
PR-23DC-PTDAI-RT-4G	2 x DC (I7 ~ I8) 4 x HSI(I9 ~ IC 60kHz) 4 x DC (ID ~ IG)	2 x PNP (Q1 ~ Q2 PWM 10kHz) 3 x Relay @ 5A(Q3~Q6) 3 x Relay @ 10A(Q7 ~ QA)	3 x PT100 (AI1 ~ AI3) 2 x 0-10V (I7 ~ I8) 4 x 0-10V or 0-20mA (ID ~ IG)	-
PR-24AC-R	14 x AC (I1 ~ IE)	10 x Relay (Q1 ~ QA)	-	-
PR-24DC-DA-R	14 x DC (I1 ~ IE)	10 x Relay (Q1 ~ QA)	6 x 0-10V (I1 ~ I6)	-
PR-24DC-DAI-RTA	12 x DC (I3 ~ IE)	6 x Relay (Q1 ~ Q6) 2 x PNP (Q7 ~ Q8 PWM 10kHz)	2 x 0-20mA (AI1 ~ AI2) 4 x 0-10V (I3 ~ I6)	1 x 0-10V (AQ9) 1 x 0-20mA (AQA)
PR-26DC-DAI-RT-WIFI	8 x DC (I1 ~ I8) 4 x HSI(I9 ~ IC 60kHz) 4 x DC (ID ~ IG)	2 x PNP (Q1 ~ Q2 PWM 10kHz) 3 x Relay @ 5A(Q3~Q6) 3 x Relay @ 10A(Q7 ~ QA)	8 x 0-10V (I1 ~ I8) 4 x 0-10V or 0-20mA (ID ~ IG)	-
PR-26DC-DAI-RT-4G	8 x DC (I1 ~ I8) 4 x HSI(I9 ~ IC 60kHz) 4 x DC (ID ~ IG)	2 x PNP (Q1 ~ Q2 PWM 10kHz) 3 x Relay @ 5A(Q3~Q6) 3 x Relay @ 10A(Q7 ~ QA)	8 x 0-10V (I1 ~ I8) 4 x 0-10V or 0-20mA (ID ~ IG)	-
PR-26DC-DAI-RT-2G	8 x DC (I1 ~ I8) 4 x HSI(I9 ~ IC 60kHz) 4 x DC (ID ~ IG)	2 x PNP (Q1 ~ Q2 PWM 10kHz) 3 x Relay @ 5A(Q3~Q6) 3 x Relay @ 10A(Q7 ~ QA)	8 x 0-10V (I1 ~ I8) 4 x 0-10V or 0-20mA (ID ~ IG)	-
PR-26DC-DAI-RT-N	8 x DC (I1 ~ I8) 4 x HSI(I9 ~ IC 60kHz) 4 x DC (ID ~ IG)	2 x PNP (Q1 ~ Q2 PWM 10kHz) 3 x Relay @ 5A(Q3~Q6) 3 x Relay @ 10A(Q7 ~ QA)	8 x 0-10V (I1 ~ I8) 4 x 0-10V or 0-20mA (ID ~ IG)	-
PR-26DC-DAI-RA-N	8 x DC (I1 ~ I8) 4 x HSI(I9 ~ IC 60kHz) 4 x DC (ID ~ IG)	2 x PNP (Q1 ~ Q2 PWM 10kHz) 3 x Relay @ 5A(Q3~Q6) 3 x Relay @ 10A(Q7 ~ QA)	8 x 0-10V (I1 ~ I8) 4 x 0-10V or 0-20mA (ID ~ IG)	1 x 0-10V (AQ1) 1 x 0-20mA (AQ2) 4 x Relay @ 5A (Q3 ~ Q6) 4 x Relay @ 10A (Q7 ~ QA)

Model	HSC	PWM	Ethernet	WiFi	GSM	RTC	RS485	Blocks	IoT	Web Server	Logging
PR-6AC-R	N	N	N	N	N	Y	N	64	N	N	N
PR-6DC-DA-R	N	N	N	N	N	Y	N	64	N	N	N
PR-12AC-R-E	N	N	N	N	N	Y	N	64	N	N	N
PR-12DC-DA-R-E	N	N	N	N	N	Y	N	64	N	N	N
PR-12DC-DA-TN	4	4	N	N	N	Y	N	512	N	N	N
PR-12DC-DA-R	4	N	N	N	N	Y	N	512	N	N	N
PR-12AC-R	N	N	N	N	N	Y	N	512	N	N	N
PR-12AC-R-N	N	N	Y	N	N	Y	Y	512	Y	Y	Y
PR-12DC-DA-R-N	4	N	Y	N	N	Y	Y	512	Y	Y	Y
PR-14AC-R	N	N	N	N	N	Y	Y	512	N	N	N
PR-14DC-DA-R	4	N	N	N	N	Y	Y	512	N	N	N
PR-18AC-R-N	N	N	Y	N	N	Y	Y	512	Y	Y	Y
PR-18DC-DAI-R-N	4	N	Y	N	N	Y	Y	1024	Y	Y	Y
PR-18DC-DA-RT	4	2	N	N	N	Y	N	1024	N	N	N
PR-18AC-R	N	N	N	N	N	Y	N	1024	N	N	N
PR-18DC-DA-R	4	N	N	N	N	Y	N	1024	N	N	N
PR-23DC-PTDAI-RT-N	4	4	Y	N	N	Y	Y	1024	Y	Y	Y
PR-23DC-PTDAI-RT-4G	4	4	Y	N	Y	Y	Y	1024	Y	Y	Y
PR-24AC-R	N	N	N	N	N	Y	Y	1024	N	N	N
PR-24DC-DA-R	4	N	N	N	N	Y	Y	1024	N	N	N
PR-24DC-DAI-RTA	4	2	N	N	N	Y	Y	1024	N	N	N
PR-26DC-DAI-RT-WIFI	4	2	Y	Y	N	Y	Y	1024	Y	Y	Y
PR-26DC-DAI-RT-4G	4	2	Y	N	Y	Y	Y	1024	Y	Y	Y
PR-26DC-DAI-RT-2G	4	2	Y	N	Y	Y	Y	1024	Y	Y	Y
PR-26DC-DAI-RT-N	4	2	Y	N	N	Y	Y	1024	Y	Y	Y
PR-26DC-DAI-RA-N	4	N	Y	N	N	Y	Y	1024	Y	Y	Y

Additional information

Weight	0.15 kg
Dimensions	95 × 58 × 80 mm
Supply	DC
Digital Inputs	2, 4
Digital Outputs	Relay, 2
Analogue Inputs	0-10 V, 4
Features	Function Block Diagram (FBD), Ladder
HS Code	8537101090
COO	CHINA

Reviews

There are no reviews yet.

Be the first to review “PR-6DC-DA-R”

You must be logged in to post a review.

Rievtech UK – xLogic from VSL

PR-6DC-DA-R

PR-6 Series PLC CPU – Digital/Analogue (DC)

Description

Not expandable.
