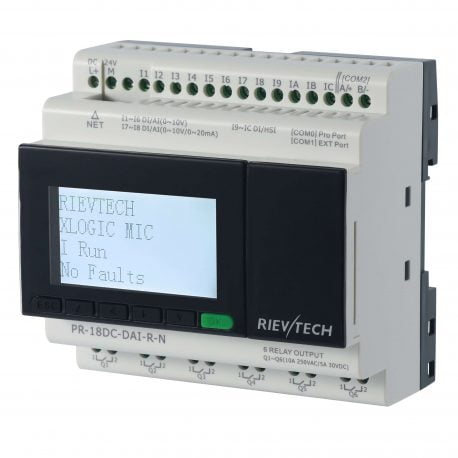

PR-18DC-DAI-R-N

PR-18 Ethernet Series PLC CPU – Digital/Analogue (DC)

Power Supply: 24 VDC
Expandable: Yes
LCD: Yes
Web Server: Yes
SD Logging: Yes
IIoT: Yes – MQTT Protocol
Communication:
- Ethernet: Yes – 10/100Mb
  - Modbu TCP/IP Client
  - Modbus TCP/IP Server
  - BACnet/IP Server
- RS485: Yes – COM2
  - Modbus RTU Client
  - Modbus RTU Server
Digital:
- Inputs – Up to 12-channels
  - I1 to IC – DI or AI(0 to 10VDC)
  - I9 to IC – DI or High Speed Inputs (60kHz)
  - OFF (0 – 3 VDC)
  - ON (8 – 24 VDC)
- Outputs – 6-channels
  - Q1 – Q6 (Max.10A @ 250VAC/ 5A @ 30VDC)
Analogue:
- Inputs – Up to 8-channels
  - I1 to I8 (0 – 10 VDC)
  - I7 TO I8 (0 – 20 mA)
- Outputs – None

SKU: PR-18DC-DAI-R-N Categories: Ethernet PLC's, Micro PLC, PR-18 Series, Rievtech PLC Tags: Analogue Inputs, BACnet/IP, DC Power, Digital Inputs, Digital Outputs, Ethernet, HSI, IIoT, modbus rtu, Modbus/TCP, MQTT, PR-18, Rievtech, RS-485, SD Logging, Web Server

Description

Range

IO Details

Features

Expansion IO

Model	Voltage	Inputs	Outputs	Expandable
PR-6AC-R	110/240 VAC	4	2	No
PR-6DC-DA-R	24 VDC	4	2	No
PR-12AC-R-E	110/240 VAC	8	4	No
PR-12DC-DA-R-E	24 VDC	8	4	No
PR-12DC-DA-TN	24 VDC	8	4	No
PR-12DC-DA-R	24 VDC	8	4	No
PR-12AC-R	110/240 VAC	8	4	No
PR-12AC-R-N	110/240 VAC	8	4	Yes
PR-12DC-DA-R-N	24 VDC	8	4	Yes
PR-18AC-R-N	110/240 VAC	8	4	Yes
PR-18DC-DAI-R-N	24 VDC	12	6	Yes
PR-18DC-DA-RT	24 VDC	12	6	Yes
PR-18AC-R	110/240 VAC	12	6	Yes
PR-18DC-DA-R	24 VDC	12	6	Yes
PR-23DC-PTDAI-RT-N	24 VDC	13	10	Yes
PR-23DC-PTDAI-RT-4G	24 VDC	13	10	Yes
PR-24AC-R	110/240 VAC	14	10	Yes
PR-24DC-DA-R	24 VDC	14	10	Yes
PR-24DC-DAI-RTA	24 VDC	14	10	Yes
PR-26DC-DAI-RT-WIFI	24 VDC	16	10	Yes
PR-26DC-DAI-RT-4G	24 VDC	16	10	Yes
PR-26DC-DAI-RT-2G	24 VDC	16	10	Yes
PR-26DC-DAI-RT-N	24 VDC	16	10	Yes
PR-26DC-DAI-RA-N	24 VDC	16	10	Yes

Model	Digital		Analogue
Model	Inputs	Outputs	Inputs	Outputs
PR-6AC-R	4 x AC (I1 ~ I4)	2 x Relay (Q1 ~ Q2)	-	-
PR-6DC-DA-R	4 x DC (I1 ~ I4)	2 x Relay (Q1 ~ Q2)	-	-
PR-12AC-R-E	8 x AC (I1 ~ I8)	4 x Relay (Q1 ~ Q4)	-	-
PR-12DC-DA-R-E	8 x DC (I1 ~ I8)	4 x Relay (Q1 ~ Q4)	4 x 0 - 10V (I1 ~ I4)	-
PR-12DC-DA-TN	4 x DC (I1 ~ I4) 4 x HSI @ 60kHz (I5 ~ I8)	2 x PNP (Q1 ~ Q2) 2 x PNP PWM (Q3 ~ Q4)	4 x 0-10V (I1 ~ I4)	-
PR-12DC-DA-R	8 x DC (I1 ~ I8) 4 x HSI @ 60kHz(I5 ~ I8)	4 x Relay (Q1 ~ Q4)	4 x 0 - 10V (I1 ~ I4)	-
PR-12AC-R	8 x AC (I1 ~ I8)	4 x Relay (Q1 ~ Q4)	-	-
PR-12AC-R-N	8 x AC (I1 ~ I8)	4 x Relay (Q1 ~ Q4)	-	-
PR-12DC-DA-R-N	8 x DC (I1 ~ I8) 4 x HSI @ 60kHz(I5 ~ I8)	4 x Relay (Q1 ~ Q4)	4 x 0 - 10V (I1 ~ I4)	-
PR-18AC-R-N	12 x AC (I1 ~ IC)	6 x Relay (Q1 ~ Q6)	-	-
PR-18AC-R	12 x AC (I1 ~ IC)	6 x Relay (Q1 ~ Q6)	-	-
PR-18DC-DA-R	12 x DC (I1 ~ IC) 4 x HSI @ 60kHz(I9 ~ IC)	6 x Relay (Q1 ~ Q6)	6 x 0-10V (I1 ~ I6)	-
PR-18DC-DA-RT	12 x DC (I1 ~ IC) 4 x HSI @ 60kHz(I9 ~ IC)	4 x Relay (Q1~Q4) 2 x PWM(Q5 ~ Q6)	6 x 0-10V (I1 ~ I6)	-
PR-18DC-DAI-R-N	10 x DC (I1 ~ I8) 4 x HSI @ 60kHZ(I9 ~ IC)	6 x Relay (Q1 ~ Q6)	6 x 0-10V (I1 ~ I6) 2 x 0-10V or 0-20mA(I7 ~ I8)	-
PR-23DC-PTDAI-RT-N	2 x DC (I7 ~ I8) 4 x HSI(I9 ~ IC 60kHz) 4 x DC (ID ~ IG)	2 x PNP (Q1 ~ Q2 PWM 10kHz) 3 x Relay @ 5A(Q3~Q6) 3 x Relay @ 10A(Q7 ~ QA)	3 x PT100 (AI1 ~ AI3) 2 x 0-10V (I7 ~ I8) 4 x 0-10V or 0-20mA (ID ~ IG)	-
PR-23DC-PTDAI-RT-4G	2 x DC (I7 ~ I8) 4 x HSI(I9 ~ IC 60kHz) 4 x DC (ID ~ IG)	2 x PNP (Q1 ~ Q2 PWM 10kHz) 3 x Relay @ 5A(Q3~Q6) 3 x Relay @ 10A(Q7 ~ QA)	3 x PT100 (AI1 ~ AI3) 2 x 0-10V (I7 ~ I8) 4 x 0-10V or 0-20mA (ID ~ IG)	-
PR-24AC-R	14 x AC (I1 ~ IE)	10 x Relay (Q1 ~ QA)	-	-
PR-24DC-DA-R	14 x DC (I1 ~ IE)	10 x Relay (Q1 ~ QA)	6 x 0-10V (I1 ~ I6)	-
PR-24DC-DAI-RTA	12 x DC (I3 ~ IE)	6 x Relay (Q1 ~ Q6) 2 x PNP (Q7 ~ Q8 PWM 10kHz)	2 x 0-20mA (AI1 ~ AI2) 4 x 0-10V (I3 ~ I6)	1 x 0-10V (AQ9) 1 x 0-20mA (AQA)
PR-26DC-DAI-RT-WIFI	8 x DC (I1 ~ I8) 4 x HSI(I9 ~ IC 60kHz) 4 x DC (ID ~ IG)	2 x PNP (Q1 ~ Q2 PWM 10kHz) 3 x Relay @ 5A(Q3~Q6) 3 x Relay @ 10A(Q7 ~ QA)	8 x 0-10V (I1 ~ I8) 4 x 0-10V or 0-20mA (ID ~ IG)	-
PR-26DC-DAI-RT-4G	8 x DC (I1 ~ I8) 4 x HSI(I9 ~ IC 60kHz) 4 x DC (ID ~ IG)	2 x PNP (Q1 ~ Q2 PWM 10kHz) 3 x Relay @ 5A(Q3~Q6) 3 x Relay @ 10A(Q7 ~ QA)	8 x 0-10V (I1 ~ I8) 4 x 0-10V or 0-20mA (ID ~ IG)	-
PR-26DC-DAI-RT-2G	8 x DC (I1 ~ I8) 4 x HSI(I9 ~ IC 60kHz) 4 x DC (ID ~ IG)	2 x PNP (Q1 ~ Q2 PWM 10kHz) 3 x Relay @ 5A(Q3~Q6) 3 x Relay @ 10A(Q7 ~ QA)	8 x 0-10V (I1 ~ I8) 4 x 0-10V or 0-20mA (ID ~ IG)	-
PR-26DC-DAI-RT-N	8 x DC (I1 ~ I8) 4 x HSI(I9 ~ IC 60kHz) 4 x DC (ID ~ IG)	2 x PNP (Q1 ~ Q2 PWM 10kHz) 3 x Relay @ 5A(Q3~Q6) 3 x Relay @ 10A(Q7 ~ QA)	8 x 0-10V (I1 ~ I8) 4 x 0-10V or 0-20mA (ID ~ IG)	-
PR-26DC-DAI-RA-N	8 x DC (I1 ~ I8) 4 x HSI(I9 ~ IC 60kHz) 4 x DC (ID ~ IG)	2 x PNP (Q1 ~ Q2 PWM 10kHz) 3 x Relay @ 5A(Q3~Q6) 3 x Relay @ 10A(Q7 ~ QA)	8 x 0-10V (I1 ~ I8) 4 x 0-10V or 0-20mA (ID ~ IG)	1 x 0-10V (AQ1) 1 x 0-20mA (AQ2) 4 x Relay @ 5A (Q3 ~ Q6) 4 x Relay @ 10A (Q7 ~ QA)

Model	HSC	PWM	Ethernet	WiFi	GSM	RTC	RS485	Blocks	IoT	Web Server	Logging
PR-6AC-R	N	N	N	N	N	Y	N	64	N	N	N
PR-6DC-DA-R	N	N	N	N	N	Y	N	64	N	N	N
PR-12AC-R-E	N	N	N	N	N	Y	N	64	N	N	N
PR-12DC-DA-R-E	N	N	N	N	N	Y	N	64	N	N	N
PR-12DC-DA-TN	4	4	N	N	N	Y	N	512	N	N	N
PR-12DC-DA-R	4	N	N	N	N	Y	N	512	N	N	N
PR-12AC-R	N	N	N	N	N	Y	N	512	N	N	N
PR-12AC-R-N	N	N	Y	N	N	Y	Y	512	Y	Y	Y
PR-12DC-DA-R-N	4	N	Y	N	N	Y	Y	512	Y	Y	Y
PR-18AC-R-N	N	N	Y	N	N	Y	Y	512	Y	Y	Y
PR-18DC-DAI-R-N	4	N	Y	N	N	Y	Y	1024	Y	Y	Y
PR-18DC-DA-RT	4	2	N	N	N	Y	N	1024	N	N	N
PR-18AC-R	N	N	N	N	N	Y	N	1024	N	N	N
PR-18DC-DA-R	4	N	N	N	N	Y	N	1024	N	N	N
PR-23DC-PTDAI-RT-N	4	4	Y	N	N	Y	Y	1024	Y	Y	Y
PR-23DC-PTDAI-RT-4G	4	4	Y	N	Y	Y	Y	1024	Y	Y	Y
PR-24AC-R	N	N	N	N	N	Y	Y	1024	N	N	N
PR-24DC-DA-R	4	N	N	N	N	Y	Y	1024	N	N	N
PR-24DC-DAI-RTA	4	2	N	N	N	Y	Y	1024	N	N	N
PR-26DC-DAI-RT-WIFI	4	2	Y	Y	N	Y	Y	1024	Y	Y	Y
PR-26DC-DAI-RT-4G	4	2	Y	N	Y	Y	Y	1024	Y	Y	Y
PR-26DC-DAI-RT-2G	4	2	Y	N	Y	Y	Y	1024	Y	Y	Y
PR-26DC-DAI-RT-N	4	2	Y	N	N	Y	Y	1024	Y	Y	Y
PR-26DC-DAI-RA-N	4	N	Y	N	N	Y	Y	1024	Y	Y	Y

Model	Voltage	Digital Inputs	Digital Outputs	Analogue Inputs	Analogue Outputs	Serial
PR-E-16AC-R	110/240 VAC	8 x AC	8 x Relay	-	-	-
PR-E-AI-I	12/24 VDC	-	-	4 x 0-20mA	-	-
PR-E-AI-VI	12/24 VDC	-	-	4 x 0-20mA/0-10V	-	-
PR-E-PT100	12/24 VDC	-	-	3 x PT100	-	-
PR-E-AQ-VI	12/24 VDC	-	-	-	2 x 0-20mA/0-10V	-
PR-E-16DC-DA-R	12/24 VDC	8 x DC (I1~I8)	8 x Relay	4 x 0-10V (I1~I4)	-	-
PR-E-16DC-DA-TN	12/24 VDC	8 x DC (I1~I8)	8 x PNP	4	-	-
PR-RS485	12/24 VDC	-	-	-	-	1 x RS485

Additional information

Weight	0.45 kg
Dimensions	130 × 140 × 70 mm
Supply	DC
Digital Inputs	High Speed Counting, 2, 4, 8, 10, 12, 14, 16, 20+
Digital Outputs	Relay, 2, 4, 6, 8, 10, 12+
Analogue Inputs	0-20 mA, 0-10 V, 2, 3, 4, 6, 8, 12, 14+
Communication	Ethernet, MQTT
Features	Function Block Diagram (FBD), IIoT, Ladder, LID Support, MQTT, PID, SD Logging, Web Server
HS Code	8537101090
COO	CHINA
