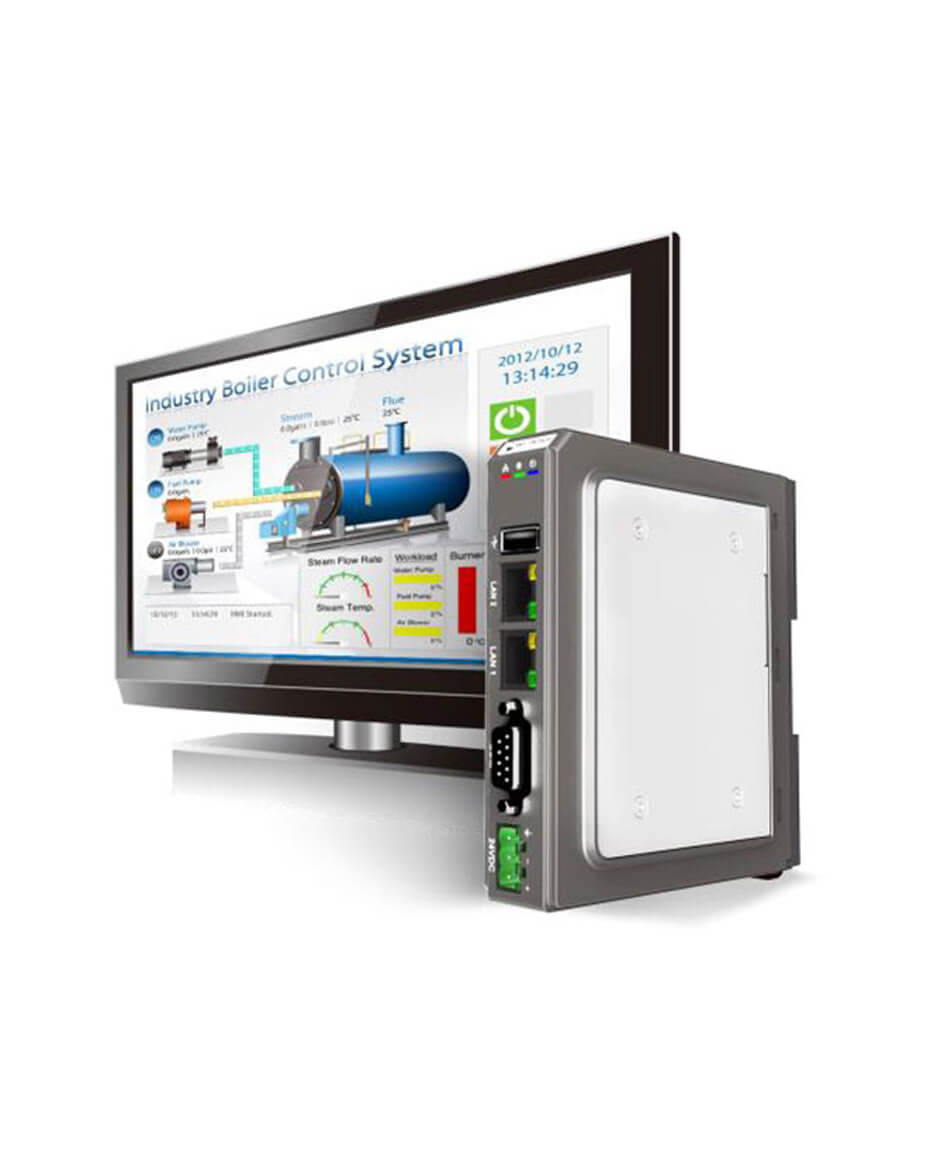

cMT-FHDX-820 – Weintek Headless HMI (DC)

The Weintek cMT-FHDX-820 model offers a perfect solution for applications where space is a premium whilst still providing excellent connection features.

  • HMI with external touchscreen

    • Full HD 1080p High Resolution HDMITM Output
    • Quad-core CPU with High Performance dedicated 3D Processor
    • Plays video in high resolution, video decode 1080p H.264
    • Supports customized resolution for 16:9 / 4:3 LCD monitor
    • Compact Design and DIN-rail Mountable
    • Built- in 4GB Flash Memory
    • One USB Host Port
    • Gigabit Ethernet Port
    • Supports MPI 187.5K
    • Built-in Power Isolator



Add to quote
SKU: cMT-FHDX-820 Categories: , , Tags: ,

Description

cMT-FHDX-820 - Weintek Headless HMI (DC)

  • Memory
    • Flash - 4Gb
    • RAM - 1Gb
  • Processor
    • CPU - Quad Core RISC

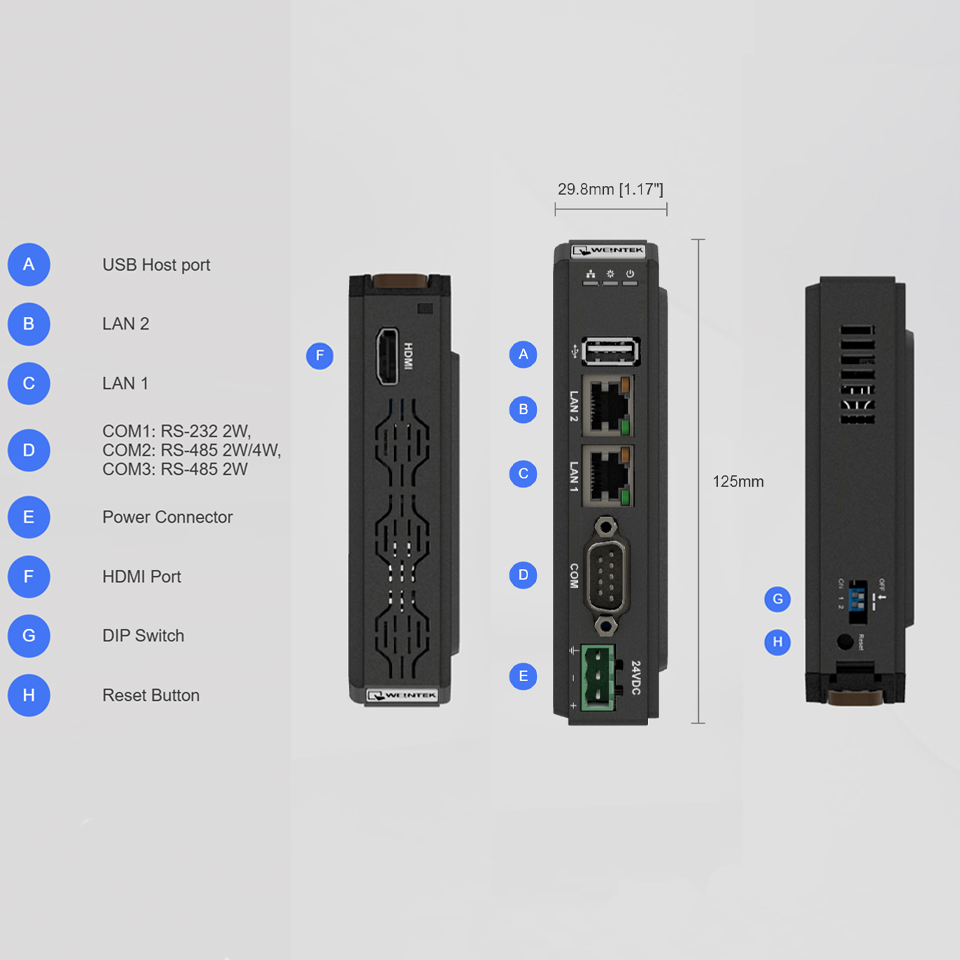

  • IO Port
    • Memory Card Slot - MicroSD x 1
    • USB Host - USB 2.0 x 1
    • Ethernet
      • LAN 1: 10/100/1000 Base-T x 1
      • LAN 2: 10/100 Base-T x 1
    • COM Port
      • COM 1: RS-232
      • COM 2: RS-485 2W/4W
      • COM 3: RS-485 2W
    • HDMI Output - Customizable (max. resolution 1920 x 1080)
    • HDMI Audio Output
  • Power - 24±20% VDC
  • Software
    • Weincloud
      • EasyAccess 2.0 (Optional)
      • Dashboard (Optional)
    • EasyBuilder Pro





Additional information

Weight 0.24 kg
Dimensions 130 × 115 × 30 mm
